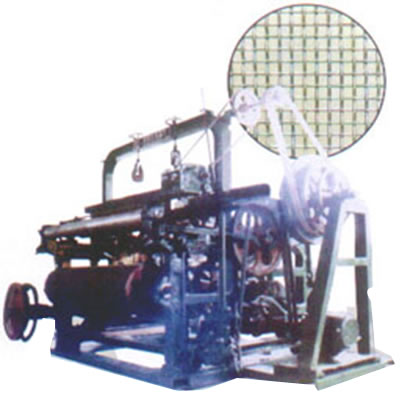

Stainless Steel Square Hole Coarse Mesh Weaving Machine
Wetter offers stainless steel square opening wire mesh looms for weaving of coarse wire mesh or big opening wire mesh. The coarse woven ss wire mesh usually has a big opening used for mine sifting, general uses and window screen.
The Coarse Mesh Weaving Machine:
Suitable for weaving of square hole mesh in stainless steel, galvanized steel and other metals.
Weaving machine for mesh 2-40mesh, for industrial mining sieve
Major Parameter of SS Coarse Mesh Weaving Looms:
| Motor Power | JQ-31-6 2.2-4KW |
| Speed of main axle | 32.8 r/min |
| Speed of crank | 65.5 r/min |
| Shuttle | 240mm |
| Pitch | 110mm |
| Roll Width | 1m-2m |
| Mesh Range | 2.58-40mesh/inch |
| Wire diameter Applied | 16-19-34gauge |
| Machine Dimensions (Length x Width x height) | (3830) x 2830 x 2200 x 1600mm |
| Machine Weight | 2.5-4ton |
 |
||
 |
 |
 |
